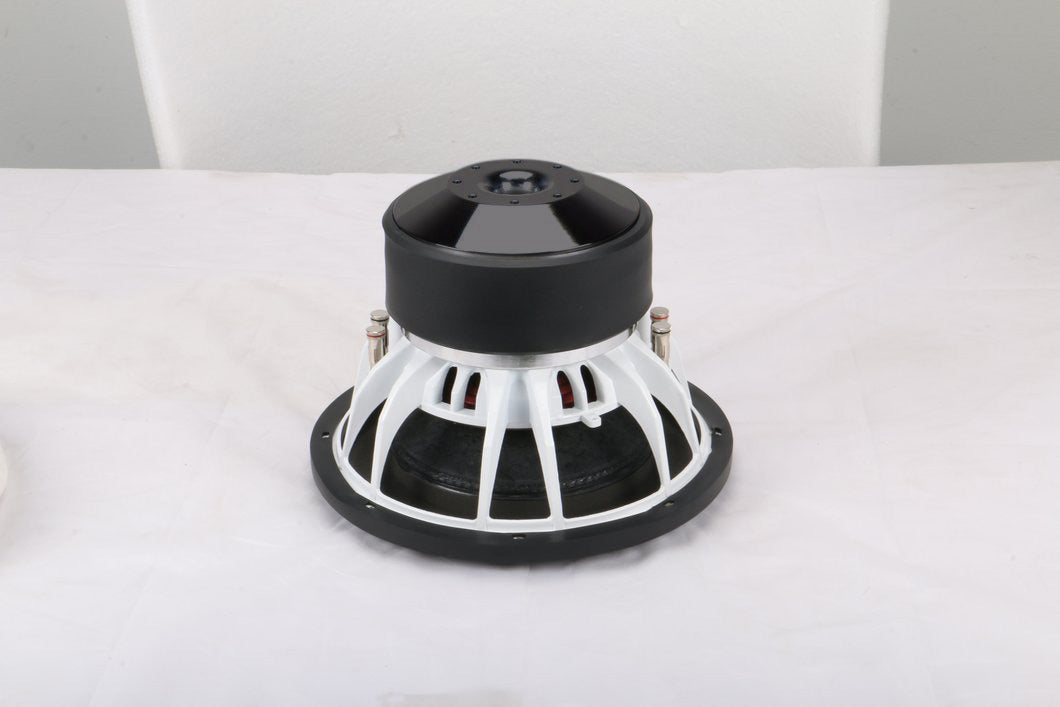

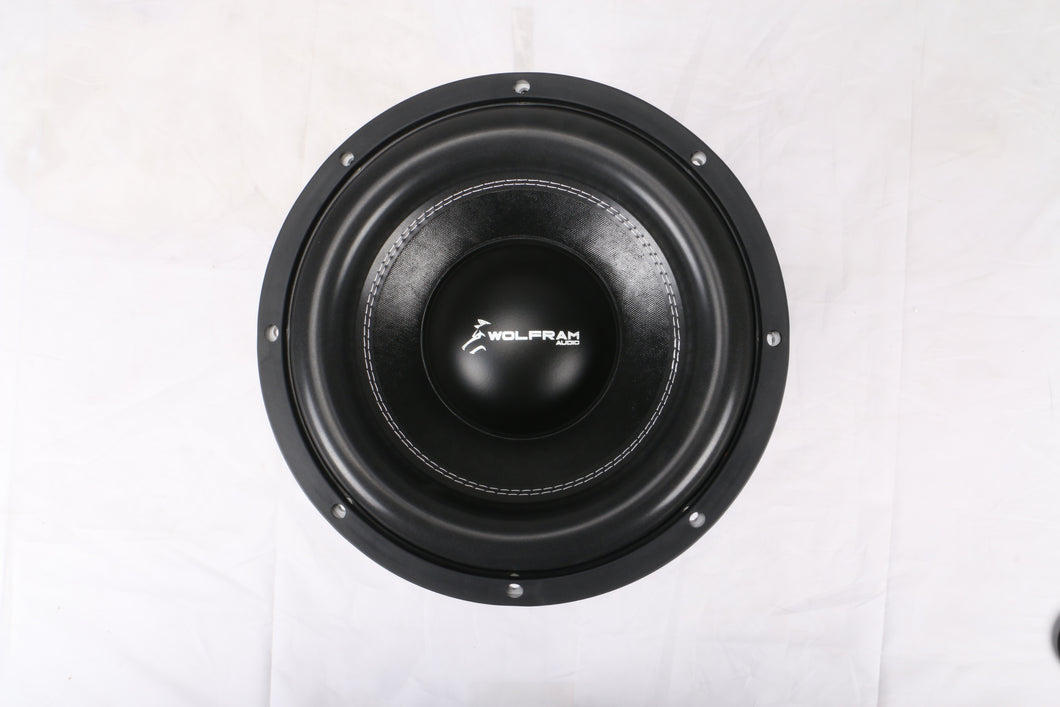

AgV2-12 | 12" SPL Subwoofer

V2 Updates:

• Increased cooling capacity
• Black motor structure
• Addressed a factory issue with spider pack glue joints

Wolfram Audio introduces the Ag series of subwoofers: featuring 1,250w RMS power handling, a 3" high temperature voice coil, and a high roll foam surround for massive excursion. The Ag series has proven itself in daily musical vehicles along with all-out SPL competition vehicles. The Ag line of subwoofers from Wolfram Audio is arguably the best bang for your buck when it comes to power handling, efficiency, and reliability.

Ag is the chemical symbol for Silver - a precious metal used in a variety of daily application. Whether you'll be competing, or just want some beats in your daily, the Ag series will be your silver lining.

Specifications:

• Wolfram Audio Ag-12 - 12" SPL Subwoofer
• Dual 2 or 4 ohm
• RMS Power: 1,250 Watts
• Peak Power: 2,500 Watts
• Voice Coil: 3" - Black Ceramic Coated Copper
• High Roll Foam Surround
• 4 Gauge Push Terminals

• Sensitivity: 85.3 dB
• Fs: 30.3Hz
• Qms: 5.59
• Qes: 0.39
• Qts: 0.37
• Mms: 291.5 gr
• Cms: 0.09 mm/N
• Bl: 23.9
• Vas: 29.4 L
• Xmax: 24.5 mm (One-Way)

Enclosure Recommendations:

• 1.0 - 1.25 ft³ Sealed
• 2.0 - 2.5 ft³ Ported (Tuned 32hz - 34hz)
• Mounting Depth: 8 1/8"
• Cutout Diameter: 11 1/4"
• Displacement: 0.15 ft³
