Hg-15 | 15" SPL Subwoofer

Regular price $459.95 Sale



**SOLD OUT** Only available from Down4SoundShop

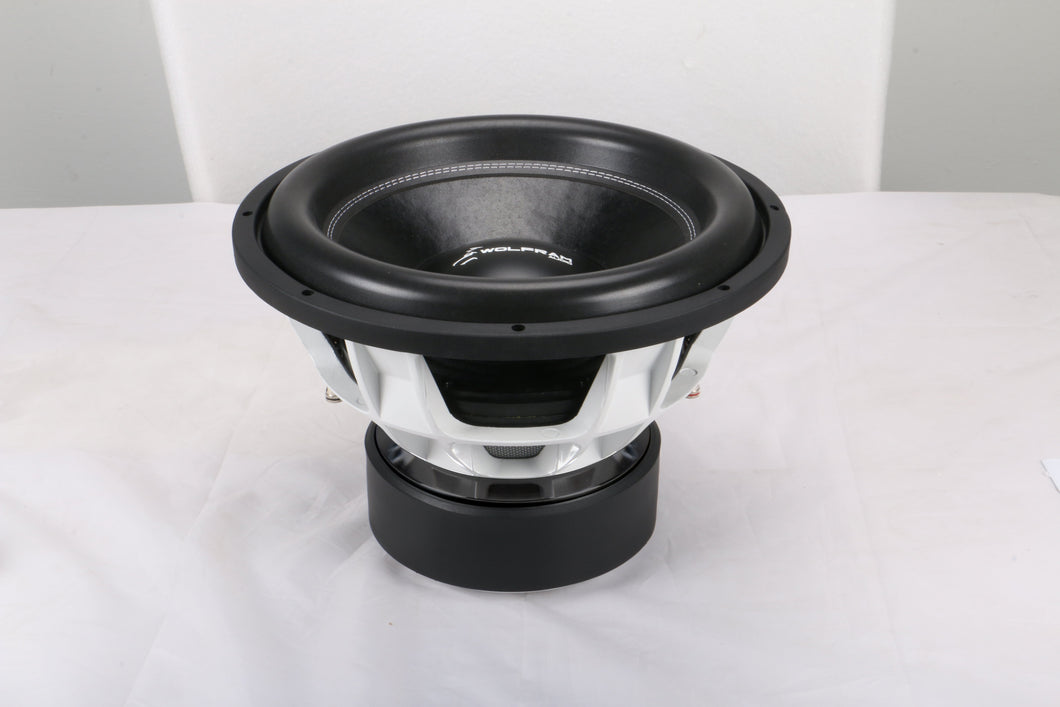

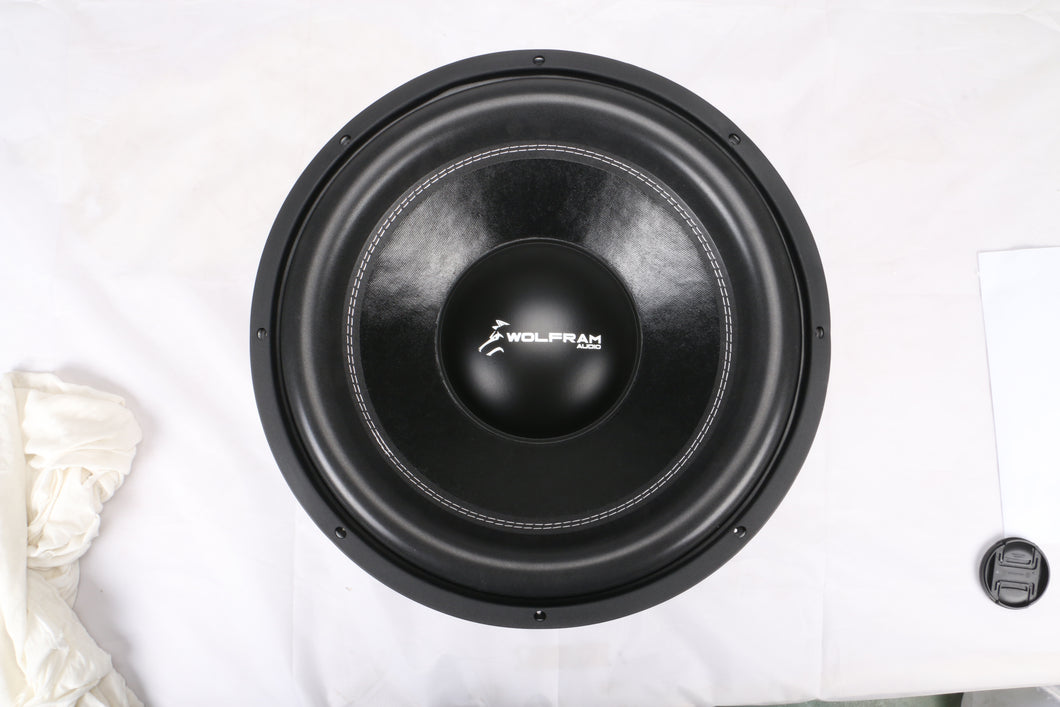

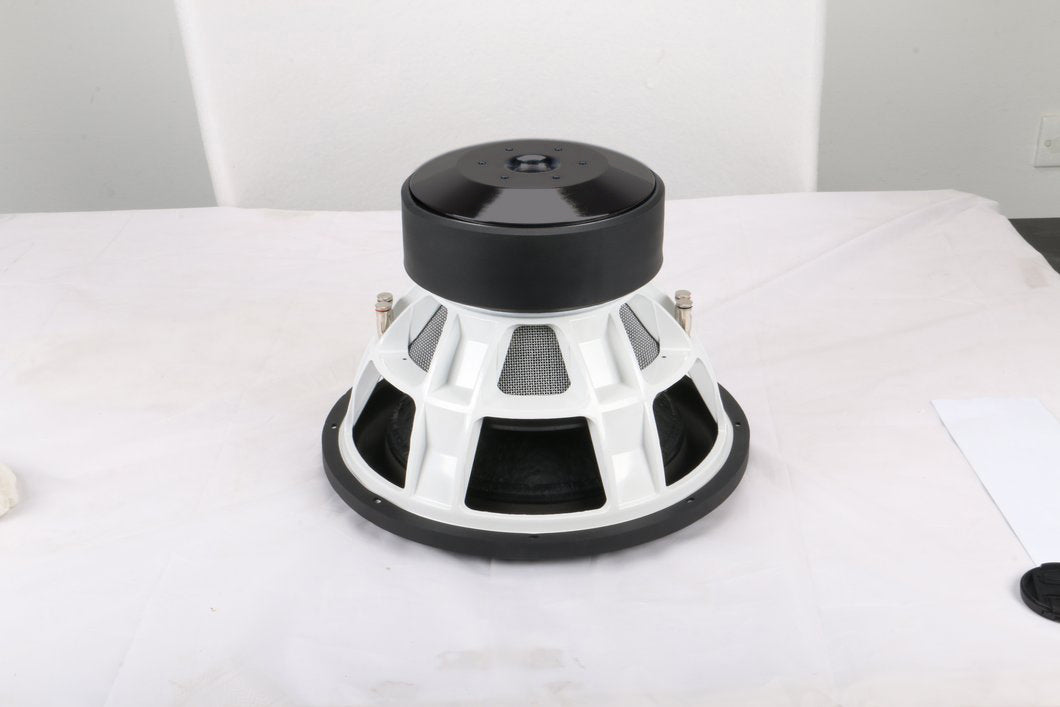

Wolfram Audio introduces the Hg-15: our unrivaled 15" SPL woofer when it comes to power, performance, and reliability. The Hg series features a massive 300oz magnet coupled with a heavily vented magnetic gap for extreme cooling. The Hg-15 utilizes a 3" 4-layer high temperature voice coil for an intense amount of power handling.

Specifications:

  • Wolfram Audio Hg-15 V2 - 15" SPL Subwoofer
  • Dual 2 or 4 Ohm Voice Coil Configuration
  • Peak Power : 4000 Watts
  • RMS Power : 2000 Watts
  • Competition Grade Pressed Paper Cone
  • Stitched High Roll Foam Surround
  • Massive Triple Stacked Magnet
  • 4 layer Nomex Spider
  • 3" Copper Voice Coil
  • 4 Gauge Push Terminals
    • Sensitivity : 89.8 dB
    • Fs : 35.1 Hz
    • Re : 1.7 Ohm
    • Qms : 2.116
    • Qes : 0.48
    • Qts : 0.44
    • Nref : 0.44%
    • Cms : 0.06 mm/N
    • Bl : 18.5
    • Vas : 45.04 L
    • Mms : 369.48 g
    • Xmax : 38 mm (One-Way)

Enclosure Recommendations:

  • 2.5 - 2.75 ft³ Sealed
  • 3.5 - 4.0 ft³ Ported (Tuned 32hz - 34hz)
  • Mounting Depth: 9 7/8"
  • Cutout Diameter: 14 1/8""
  • Displacement: 0.17 ft³
