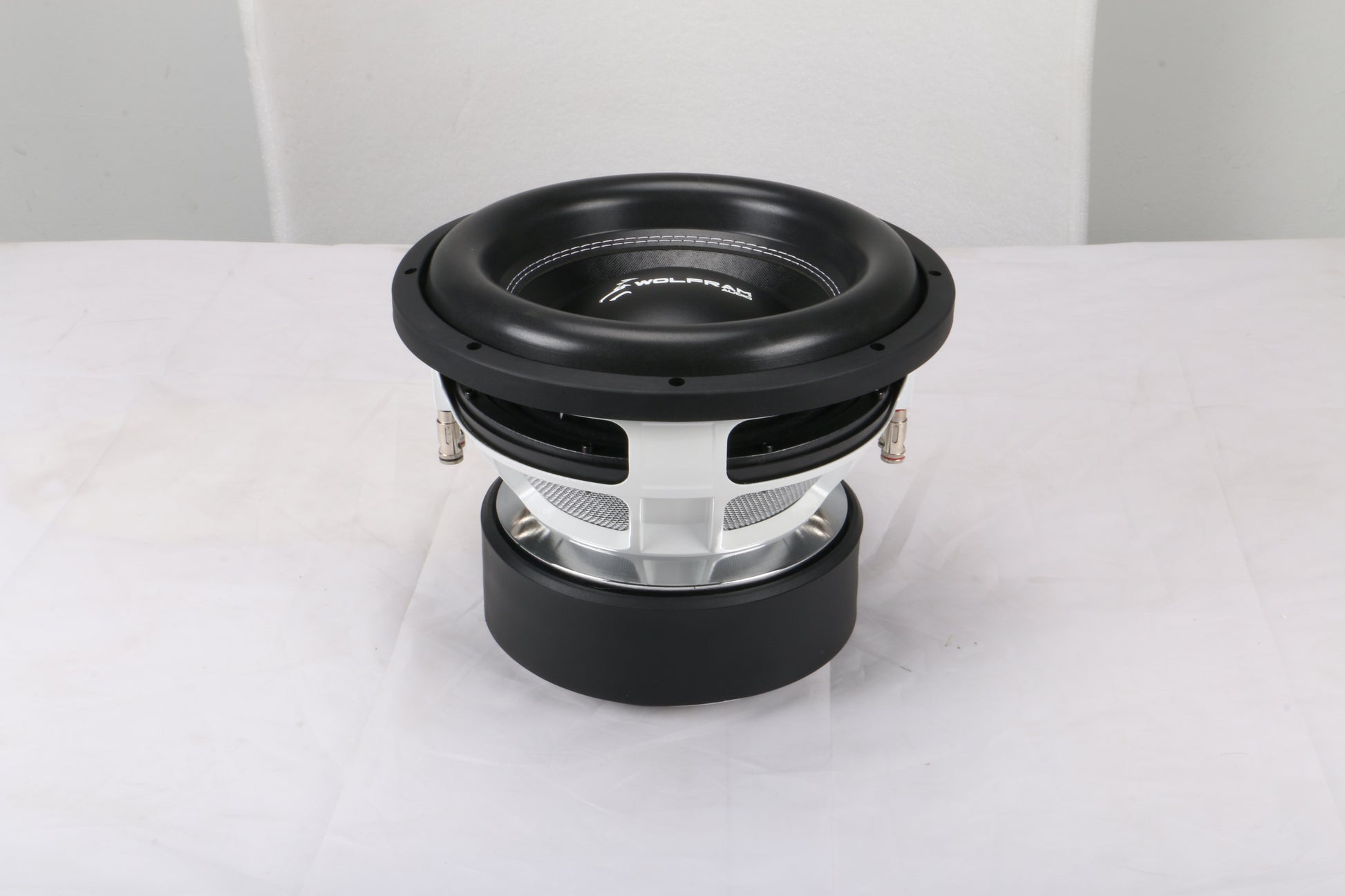

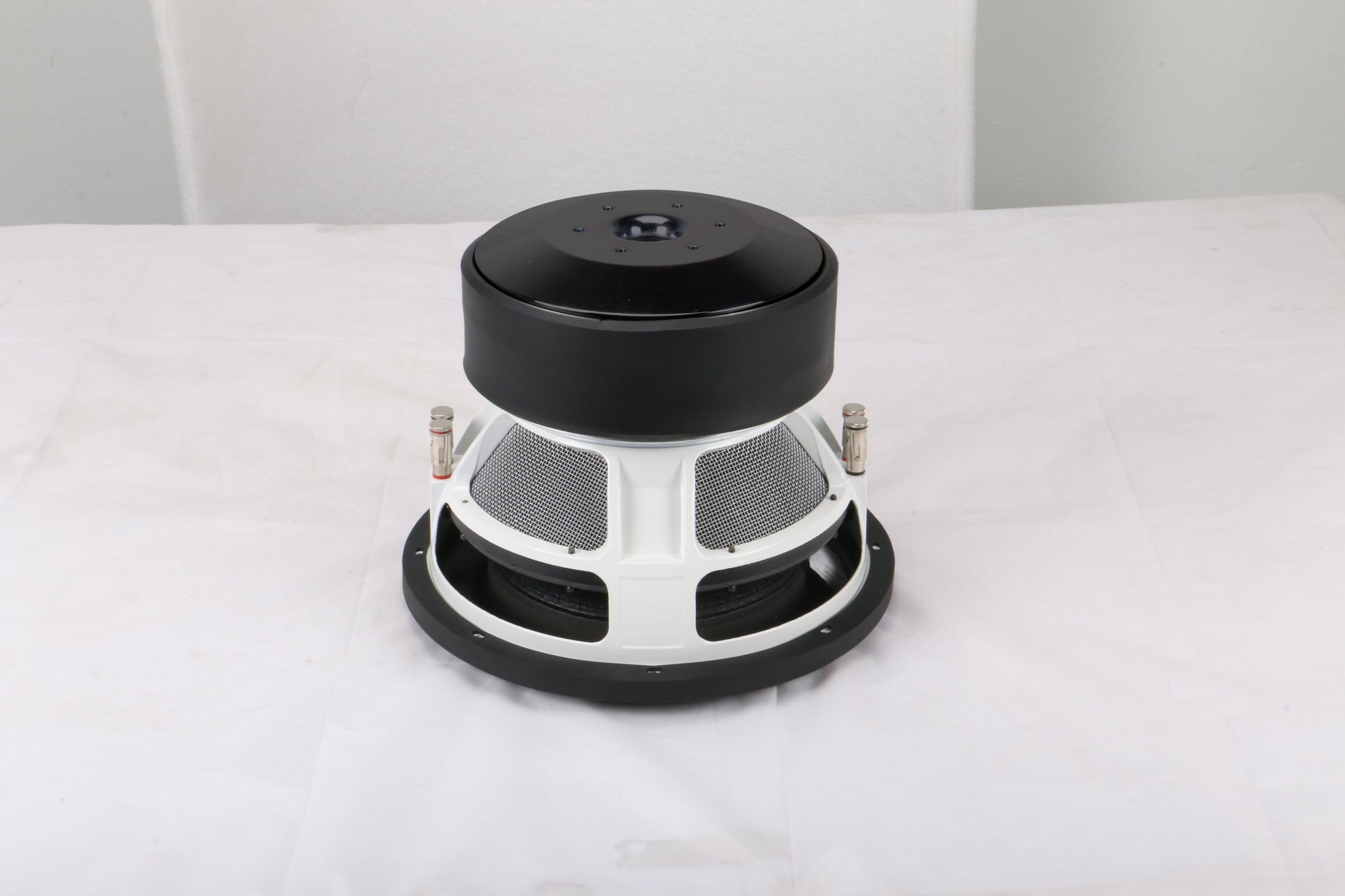

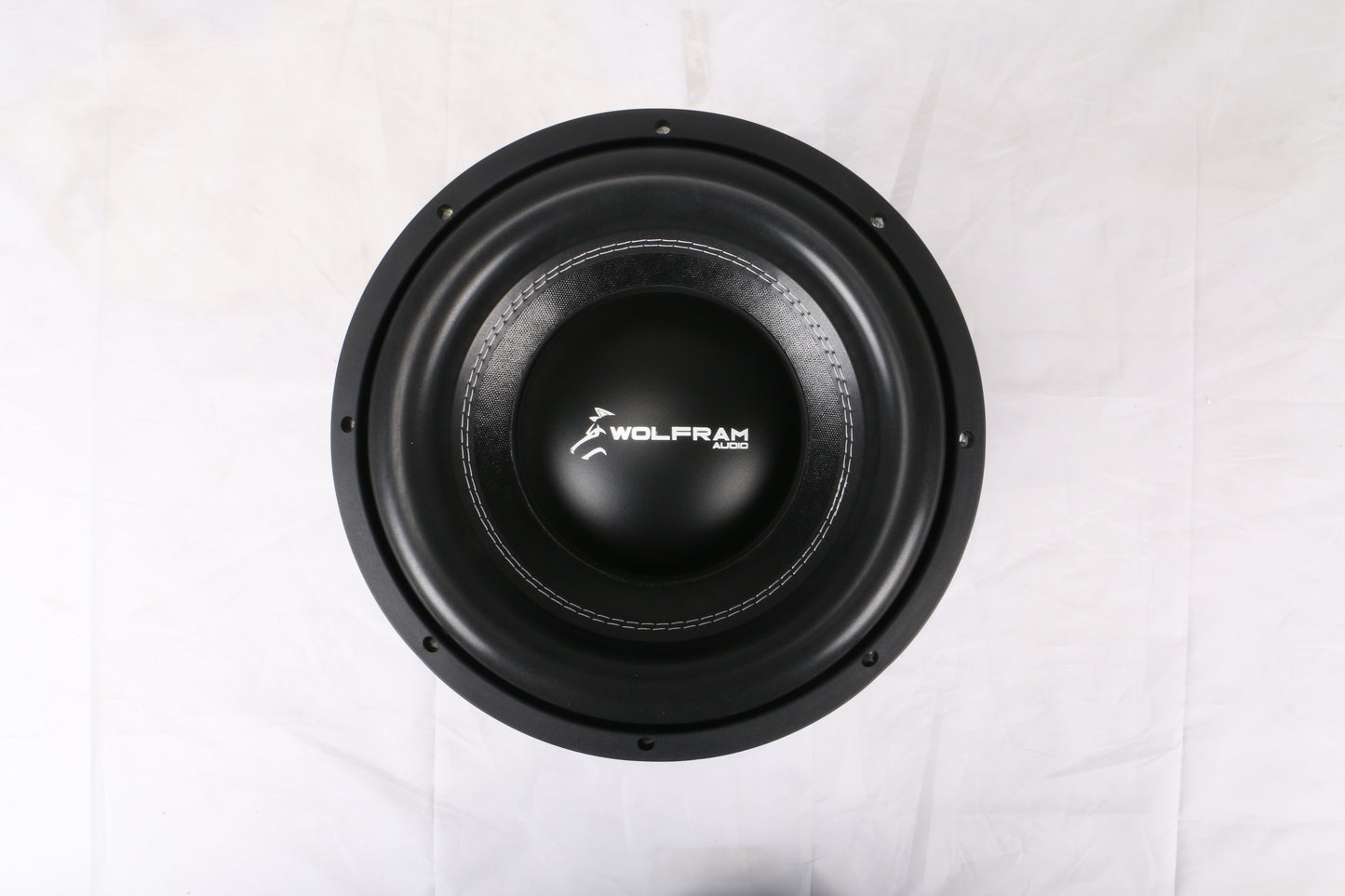

Hg-12 | 12" SPL Subwoofer

**SOLD OUT** Only available from Down4SoundShop

Wolfram Audio introduces the Hg-12: our unrivaled 12" SPL woofer when it comes to power, performance, and reliability. The Hg series features a massive 300oz magnet coupled with a heavily vented magnetic gap for extreme cooling. The Hg-12 utilizes a 3" 4-layer high temperature voice coil for an intense amount of power handling.

Specifications:

• Wolfram Audio Hg-12  - 12" SPL Subwoofer
• Dual 2 or 4 Ohm Voice Coil Configuration
• Peak Power : 4000 Watts
• RMS Power : 2000 Watts
• Competition Grade Pressed Paper Cone
• Stitched High Roll Foam Surround
• Massive Triple Stacked Magnet
• 4 layer Nomex spider
• 3" Copper Voice Coil
• 4 Gauge Push Terminals

• Sensitivity : 88.9 dB
• Fs : 35.1 Hz
• Re :  1.7 Ohms
• Qms : 2.02
• Qes :  0.51
• Qts :  0.41
• Nref :  0.15%
• Cms :  0.06 mm/N
• Bl :  15.97
• Vas :  18.7 L
• Mms :  346.8 gr
• Xmax :  37mm (One-Way)

Enclosure Recommendations:

• 1.0 - 1.25 ft³ Sealed
• 2.0 - 2.5 ft³ Ported (Tuned 32hz - 34hz)
• Mounting Depth: 8 1/2"
• Cutout Diameter: 11 1/4"
• Displacement: 0.15 ft³
