AW-12000.1 Class D Monoblock

 ***External Cooling Fan Recommended***

All amplifiers purchased from Wolfram Audio come with a 30-day(from purchase) exchange warranty. After the 30 days, all amplifiers have a 1-year warranty repair from date of purchase.
Warranties are non transferrable.

AW Updates:

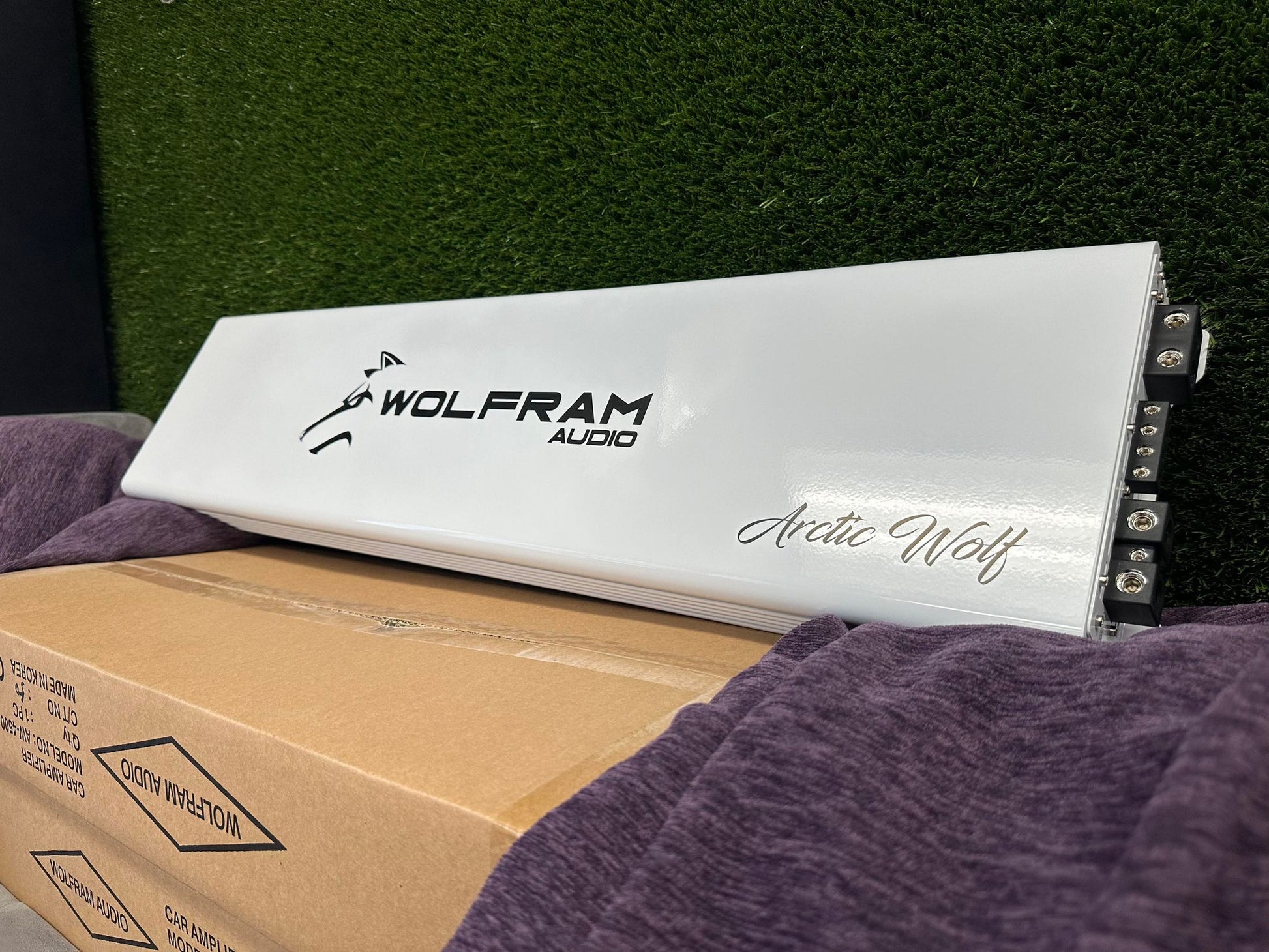

• Gloss White Heatsink

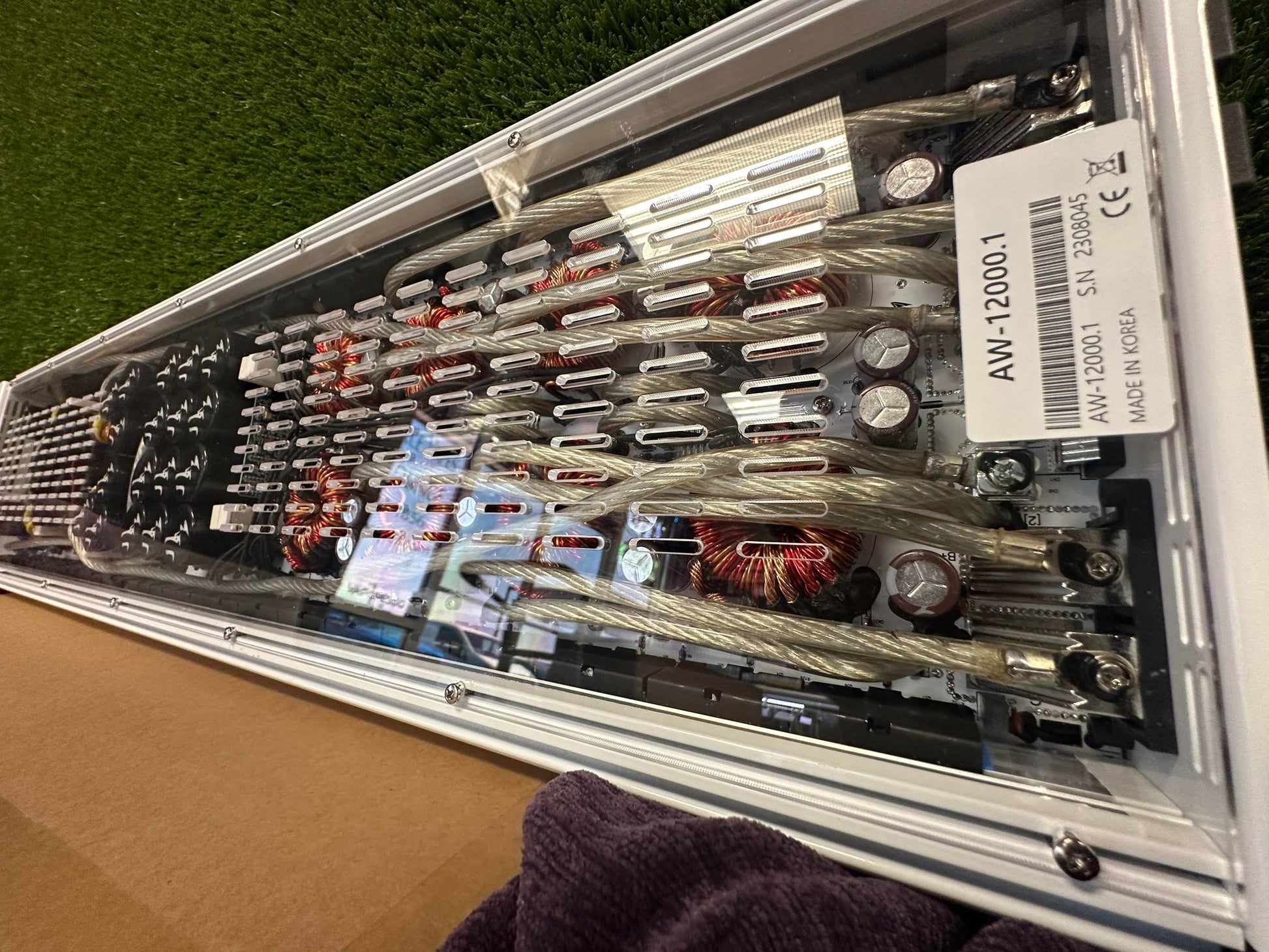

• White PCB (Circuit board)

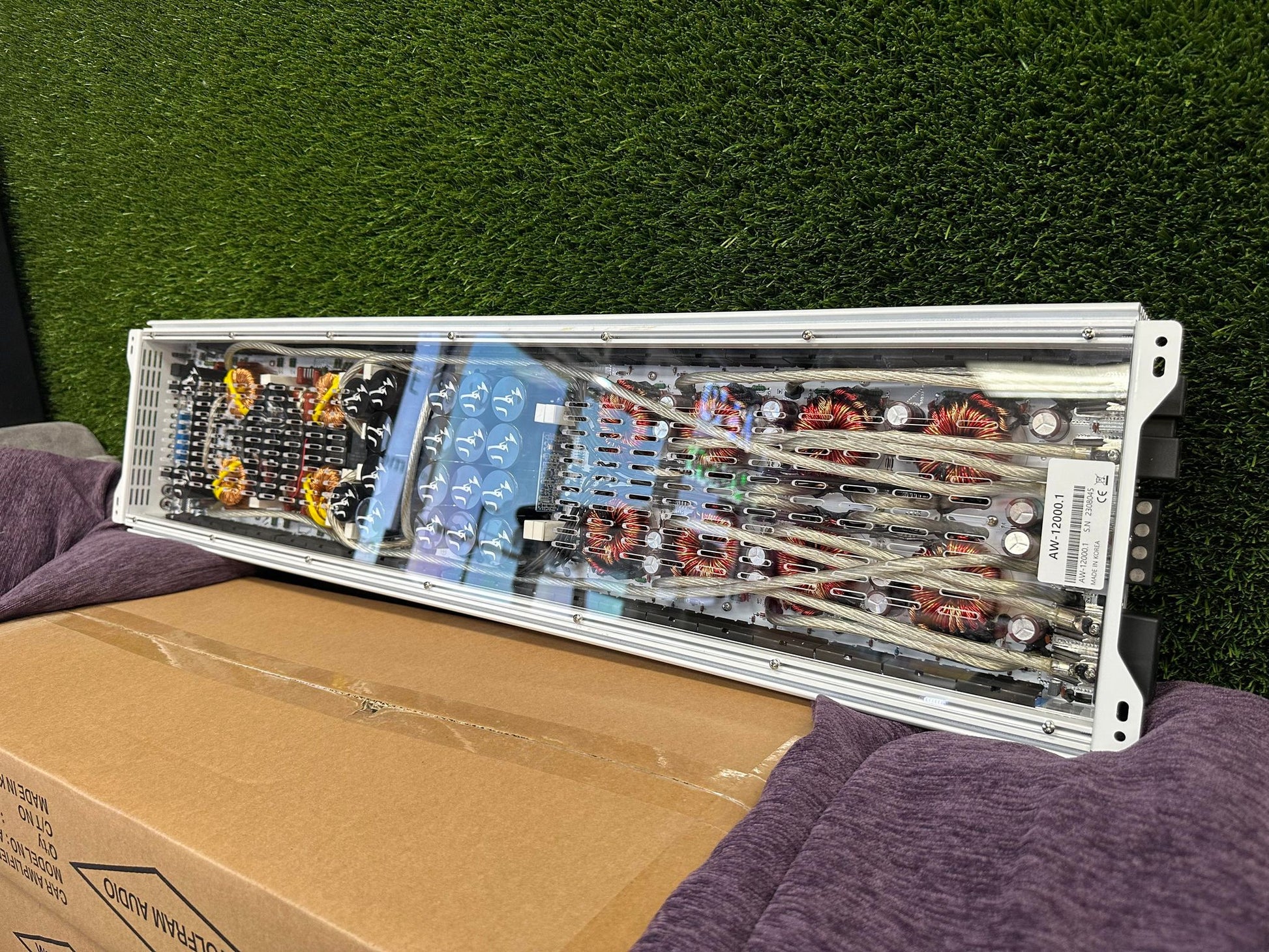

• Plexiglass backplate for PCB visibility

 The Wolfram Audio AW-12000.1 is an ideal single channel powerhouse for the most serious audiophiles. Pairing the intricate circuit design along with custom tooled aluminum heatsinks allows this amplifier to run at maximum efficiency. Linkable at 2 ohm (1 ohm to each amp), the AW-12000.1 allows multiple amps to be synced together perfectly as one.

Specifications:

• RMS Power @ 1 Ohm : 12,000 Watts x 1 Channel (14.4v)
• RMS Power @ 2 Ohms : 7,000 Watts x 1 Channels (14.4v)
• RMS Power @ 4 Ohms : 3,700 Watts x 1 Channels (14.4v)
• RMS Power @ 2 Ohms (Linked) :  23,400 Watts x 1 Channel (14.4v)
• Frequency Response : 10hz~350hz (+/-1db)
• Working Voltage : 10V-16V
• Signal-to-Noise Ratio (Sensitivity) : >90dB
• Efficiency @ 4 Ohms : 90%
• Low Level Input (Gain) : 8V - 200mV
• Low Pass Filter : 30Hz - 250Hz
• Bass Boost : 0 ~ 12 dB
• Subsonic Filter : 10Hz - 60Hz
• Phase Shift : 0-180 Degrees
• 4-Way Protection Circuitry Built-in (Thermal, Voltage, Speaker, DC)
• LED Power, Clip, & Protection Indicators
• Master / Slave (Strap) : Yes
• LINK MODE
• Recommended Fuse Rating : 1,000 Amps
• Dual 1/0 Gauge Power and Ground Terminal Inputs
• Remote Level Control Knob Included (Clipping Indicator)
