AW-4500.1 Class D Monoblock

All amplifiers purchased from Wolfram Audio come with a 30-day(from purchase) exchange warranty. After the 30 days, all amplifiers have a 1-year warranty repair from date of purchase.
Warranties are non transferrable.

AW Updates:

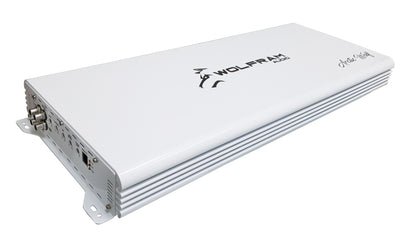

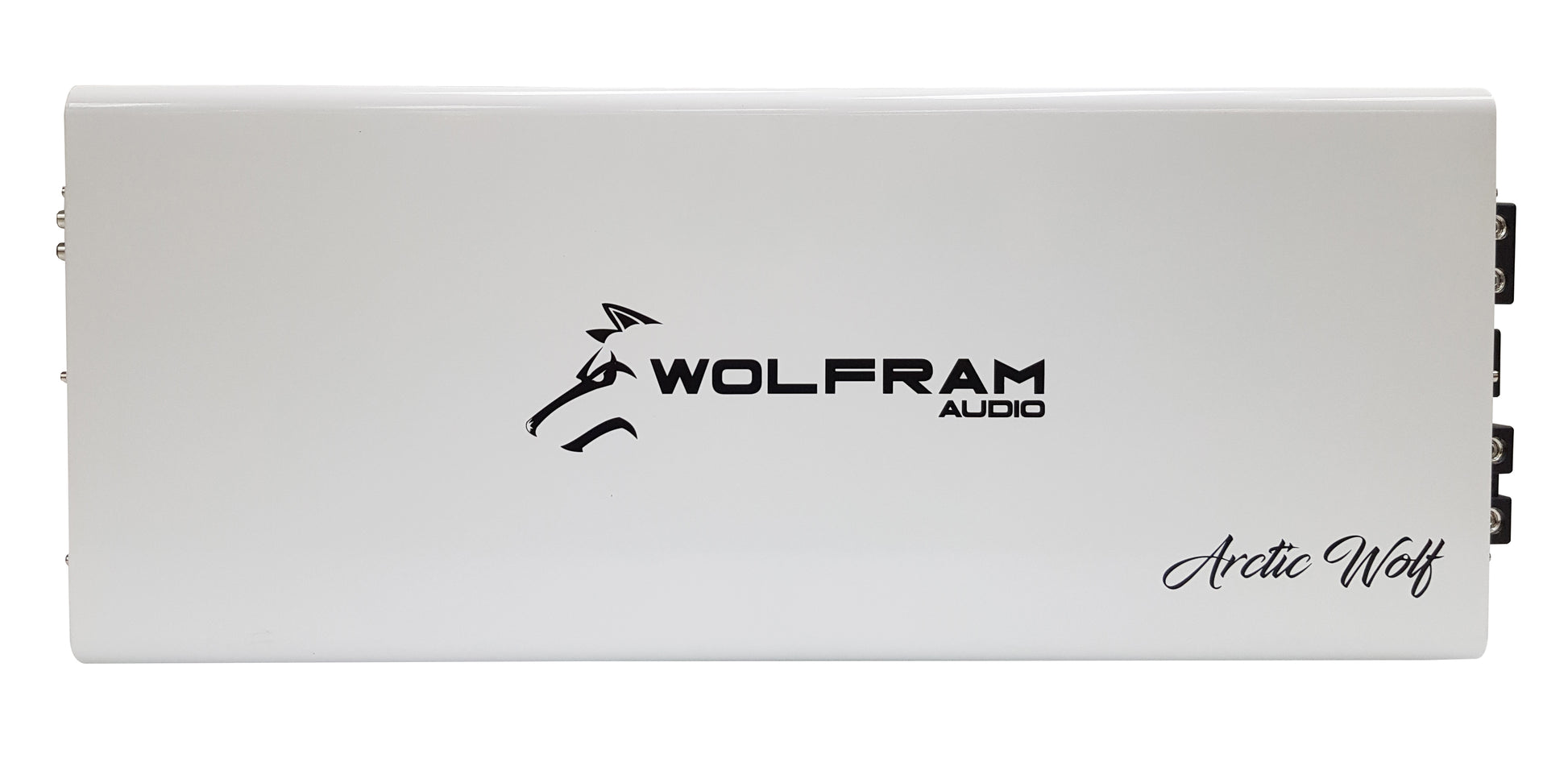

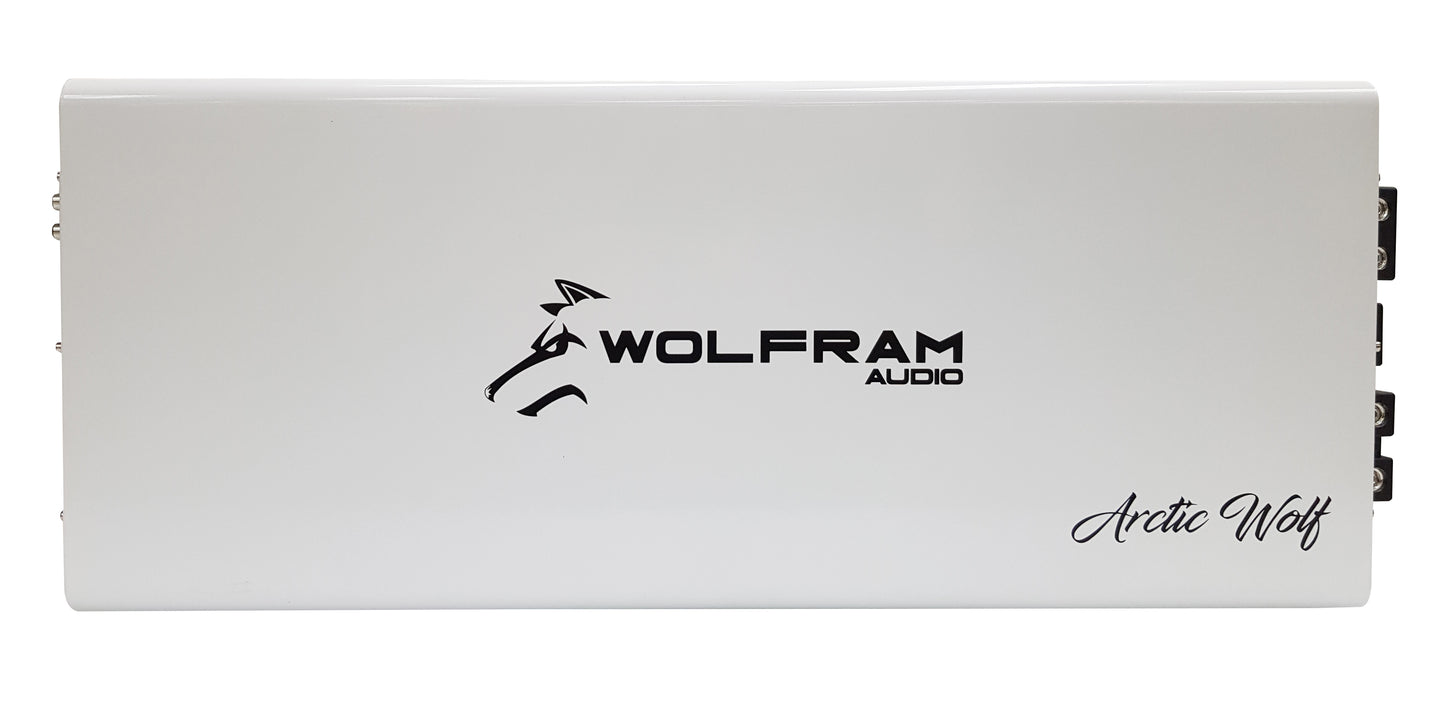

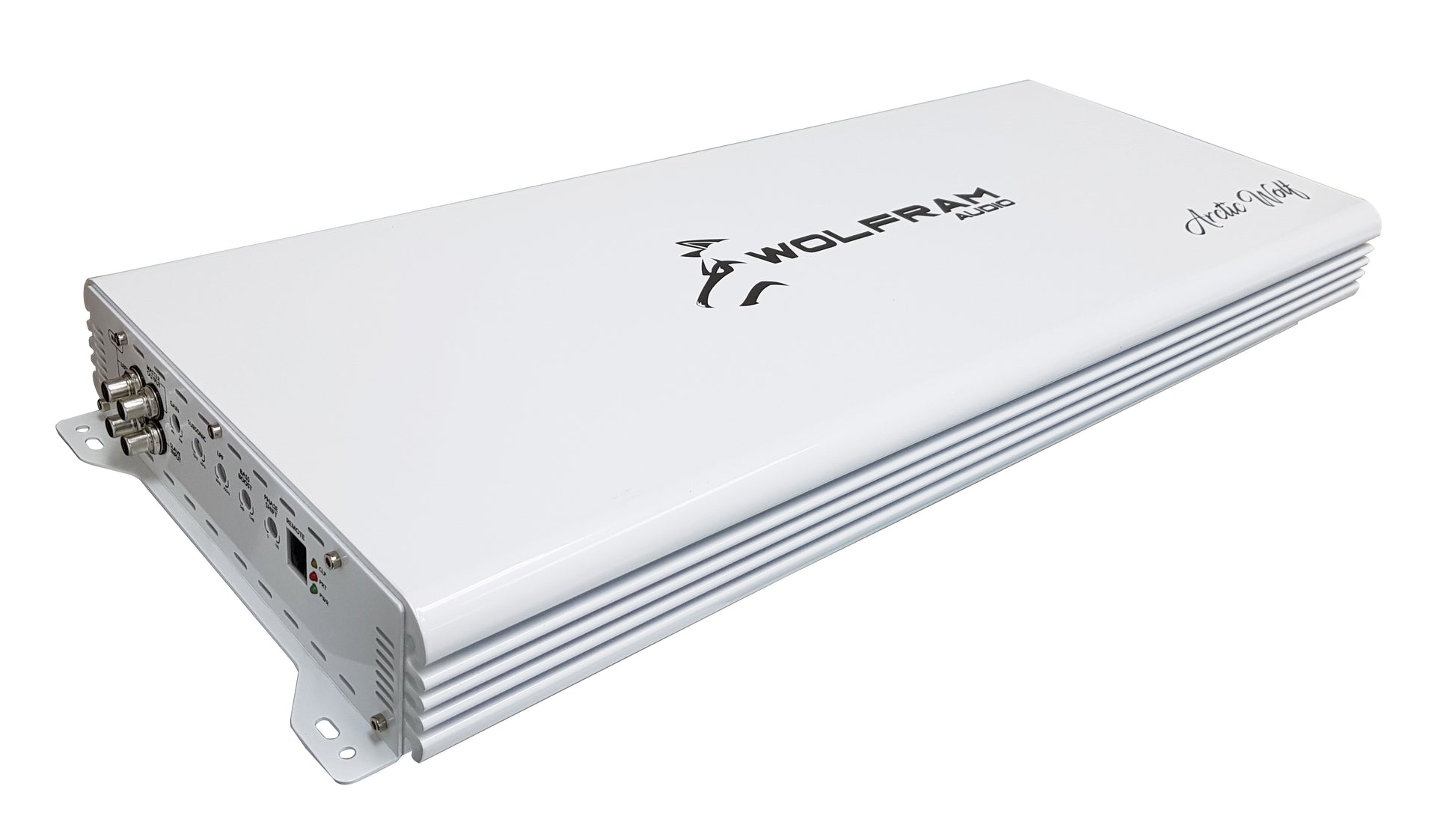

• Gloss White Heatsink
• White PCB (Circuit board)

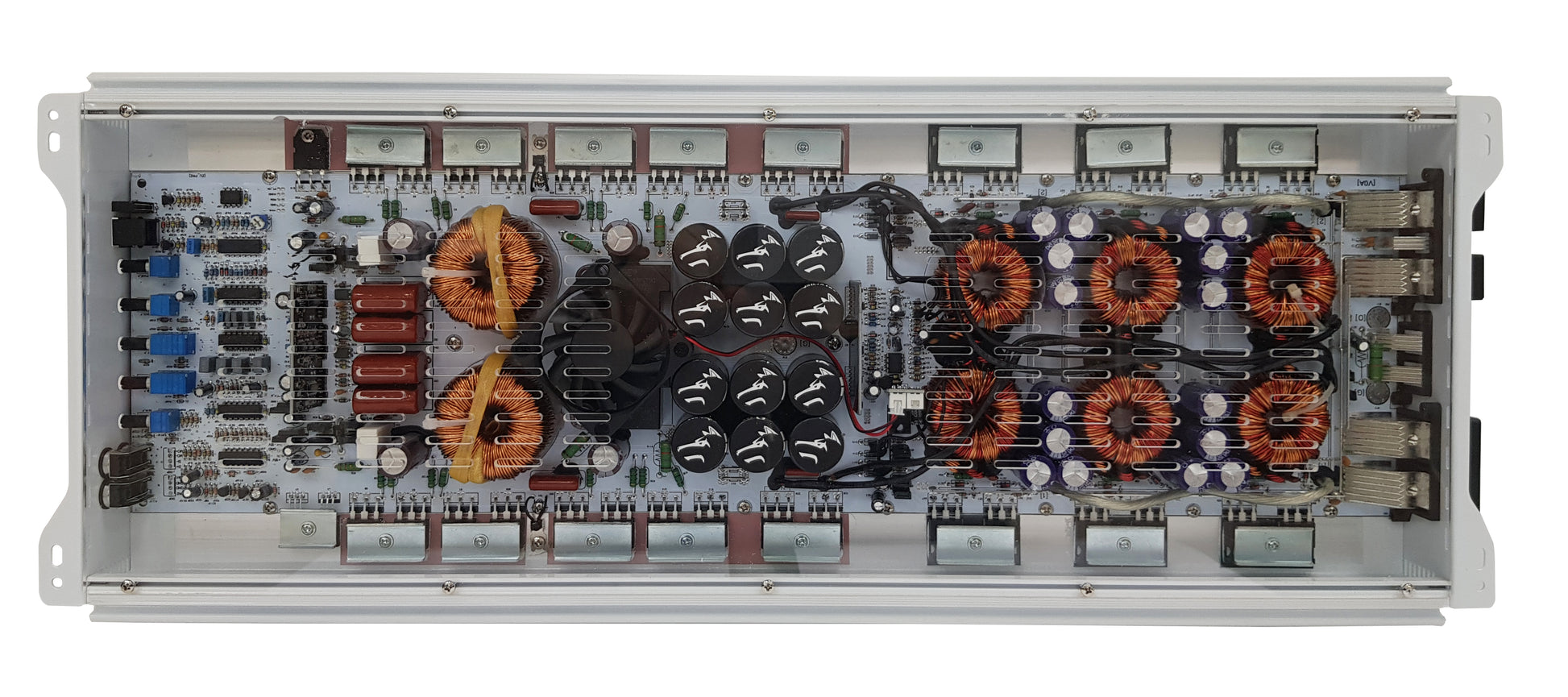

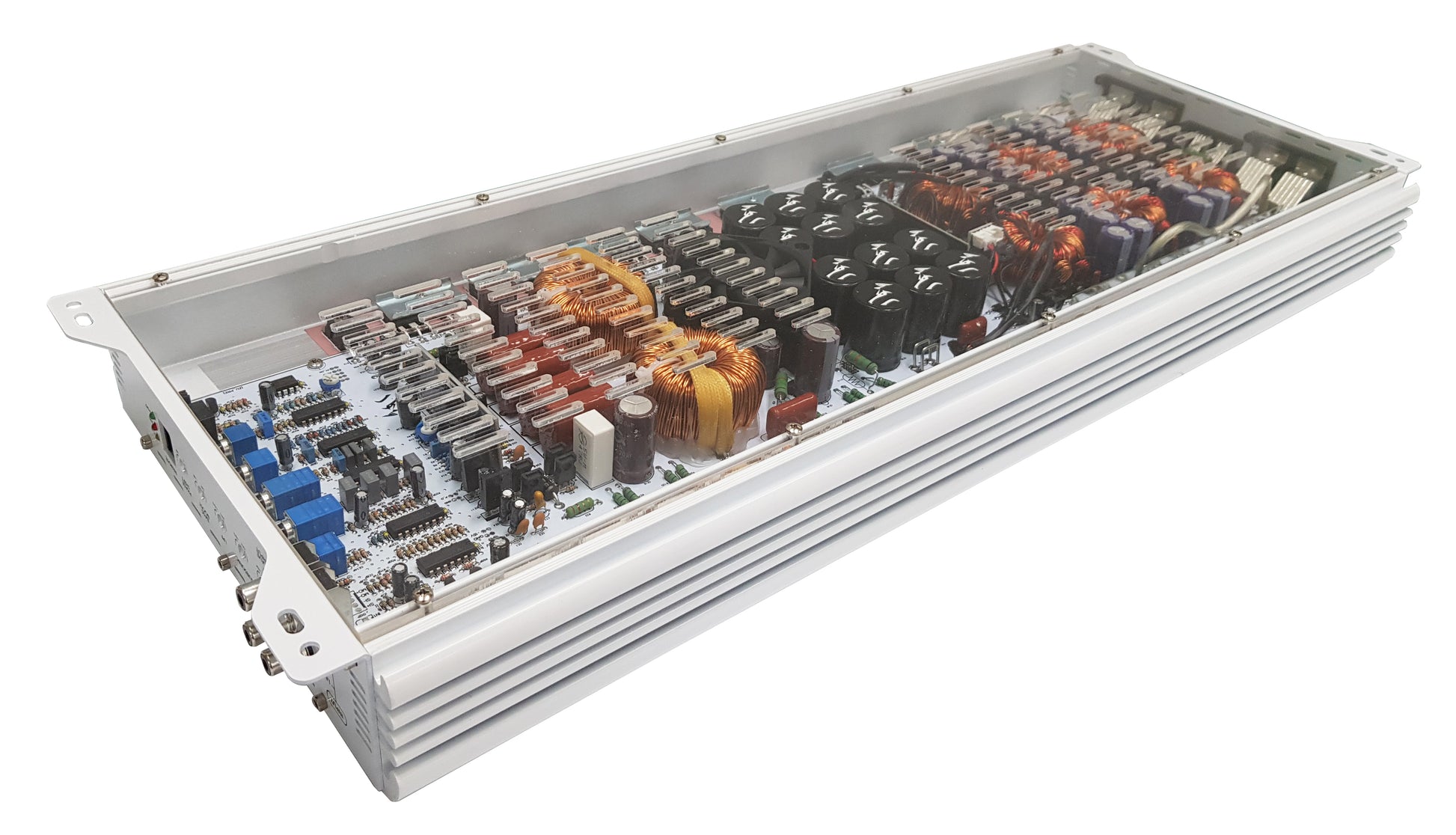

• Plexiglass backplate for PCB visibility
• Lowered protection circuit to 16v
• Increased power output in 12-16v range
• Added clip indicator on amp and bass knob

The Wolfram Audio AW-4500.1 is an ideal single channel powerhouse for the most serious audiophiles. Pairing the intricate circuit design along with custom tooled aluminum heatsinks allows this amplifier to run at maximum efficiency. Linkable at 2 ohm (1 ohm to each amp), the AW-4500.1 allows multiple amps to be synced together perfectly as one.

Specifications:

• RMS Power @ 1 Ohm : 4,500 Watts x 1 Channel (14.4v)
• RMS Power @ 1 Ohm : 5,500 Watts x 1 Channel (16.0v)
• RMS Power @ 2 Ohms : 3,000 Watts x 1 Channels (14.4v)
• RMS Power @ 4 Ohms : 1,400 Watts x 1 Channels (14.4v)
• RMS Power @ 2 Ohms (Linked) :  9,000 Watts x 1 Channel (14.4v)
• Frequency Response : 10hz~350hz (+/-1db)
• Working Voltage : 10V-18V
• Signal-to-Noise Ratio (Sensitivity) : >90dB
• Efficiency @ 4 Ohms : 86%
• Low Level Input (Gain) : 8V - 200mV
• Low Pass Filter : 30Hz - 250Hz
• Bass Boost : 0 ~ 12 dB
• Subsonic Filter : 10Hz - 60Hz
• Phase Shift : 0-180 Degrees
• 4-Way Protection Circuitry Built-in (Thermal, Voltage, Speaker, DC)
• LED Power & Protection Indicators
• Master / Slave (Linkable) : Yes
• Recommended Fuse Rating : 450 Amps

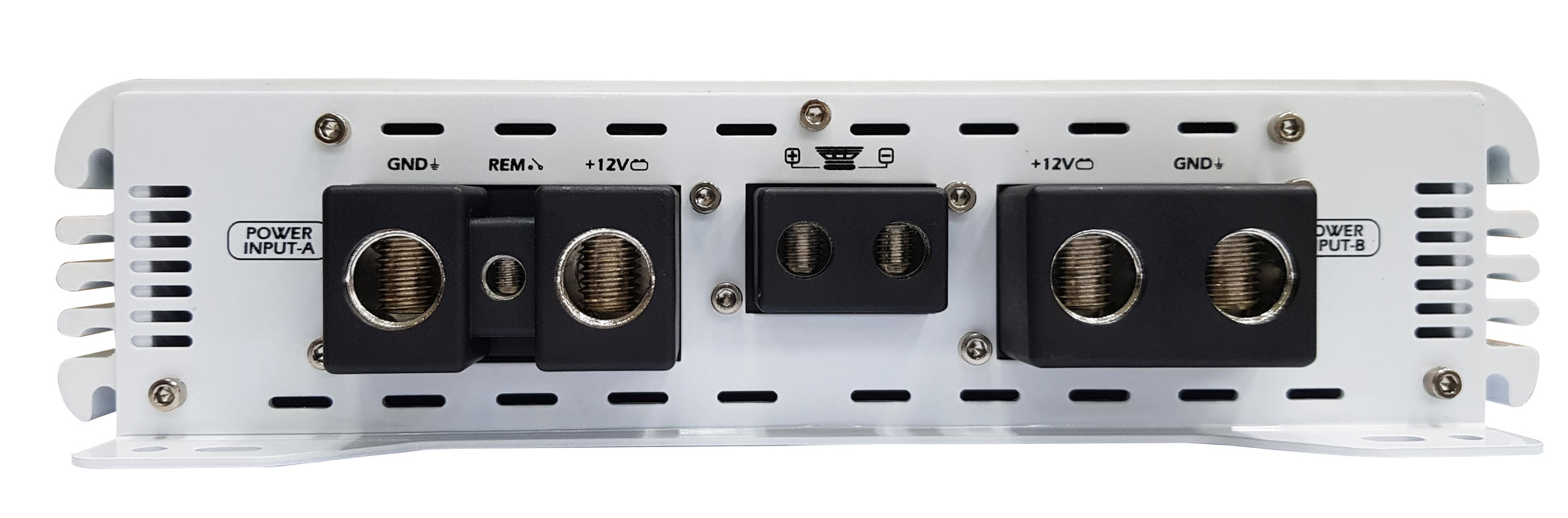

• Dual 1/0 Gauge Power and Ground Terminal Inputs
• Remote Level Control Knob Included
• Dimensions: 8.75"W x 23.25"L x 2.05"H
