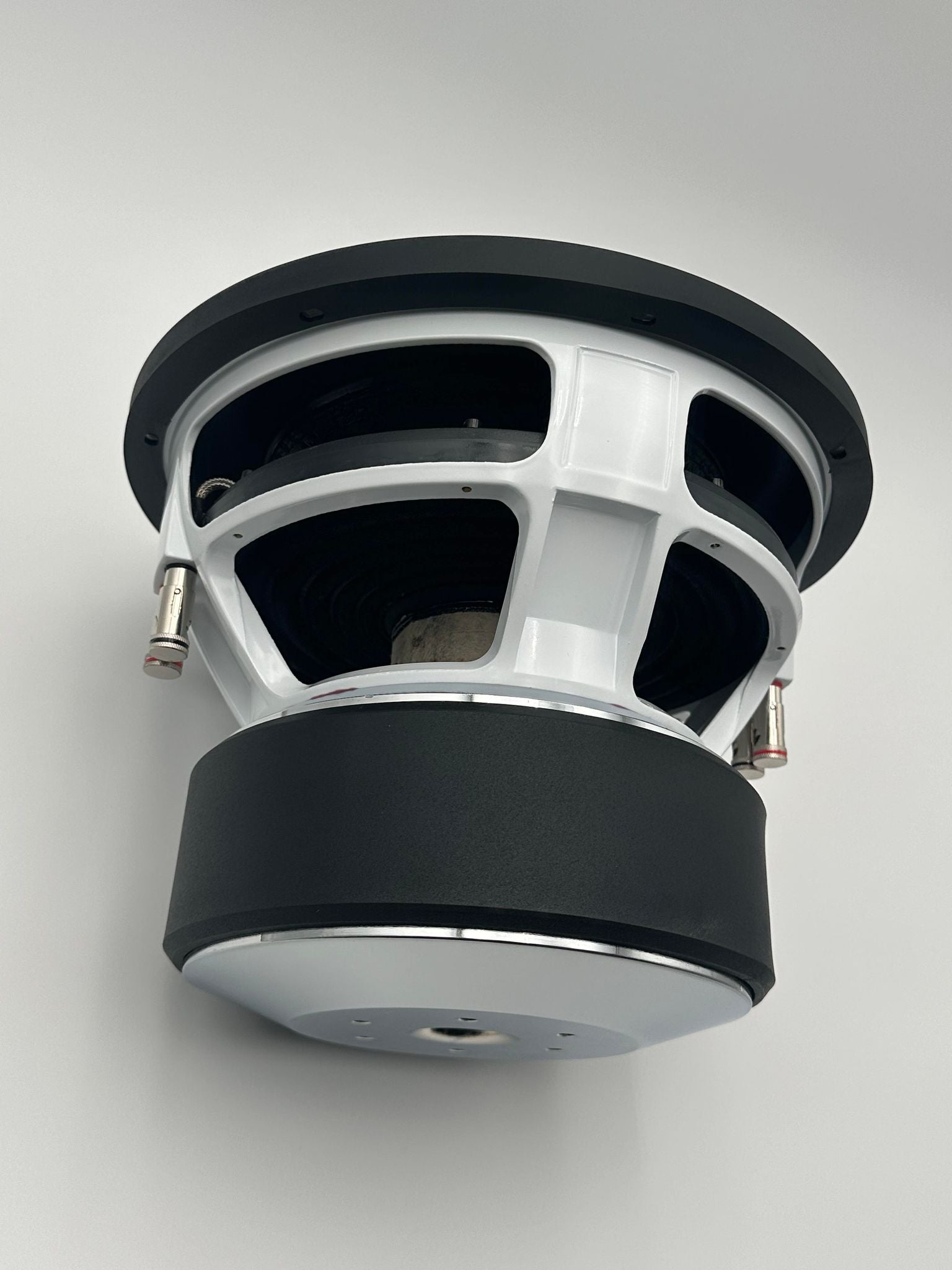

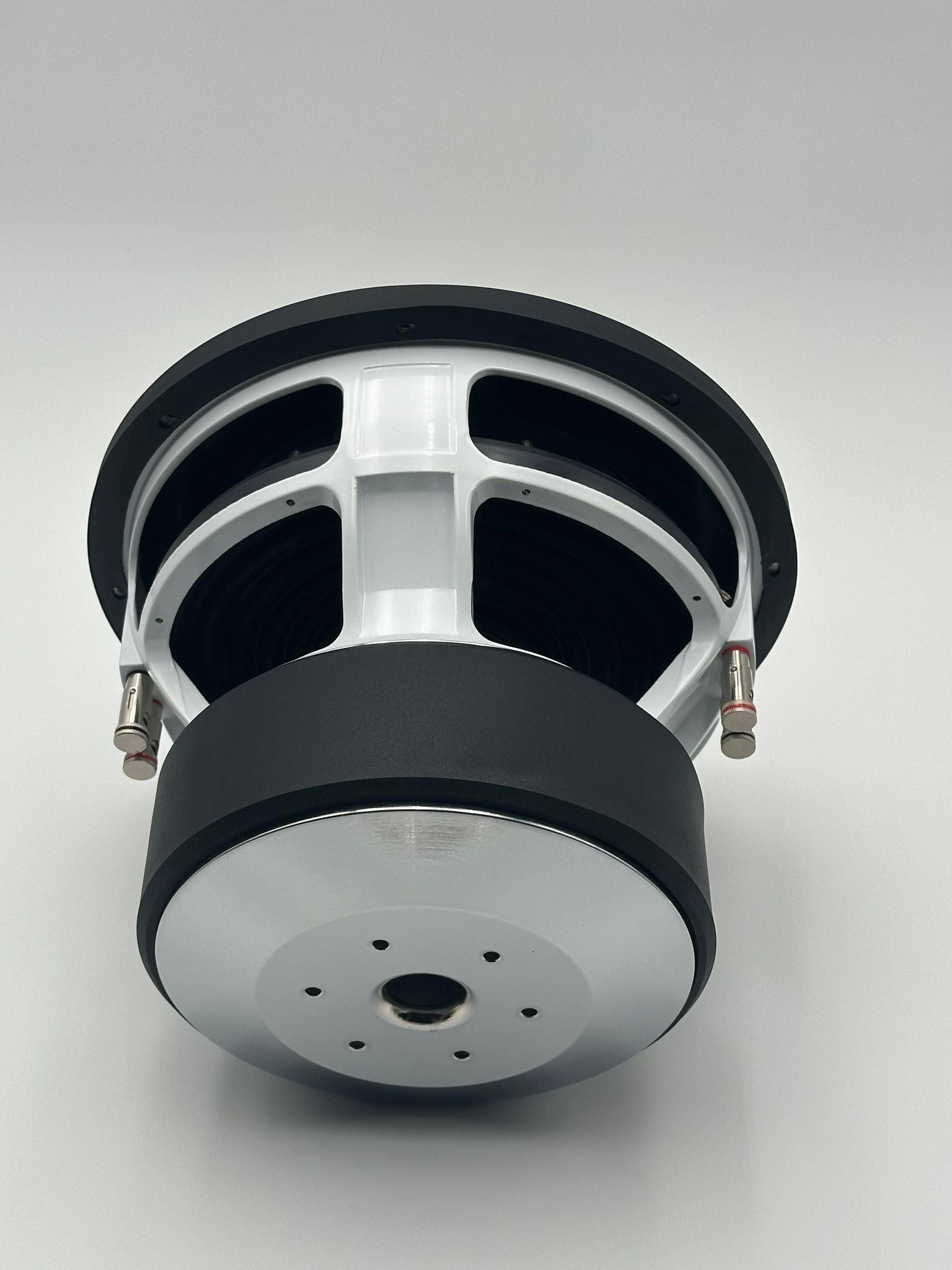

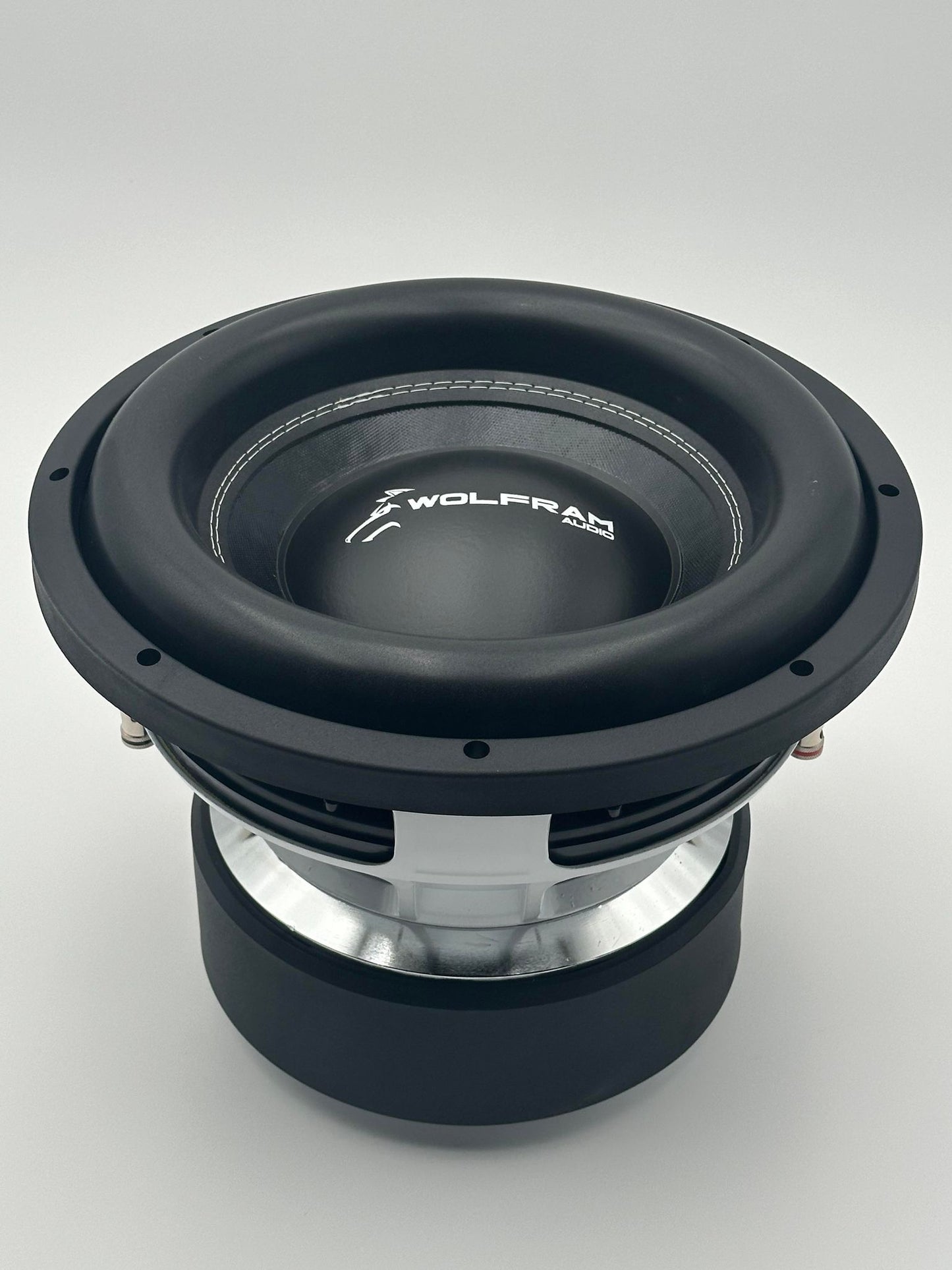

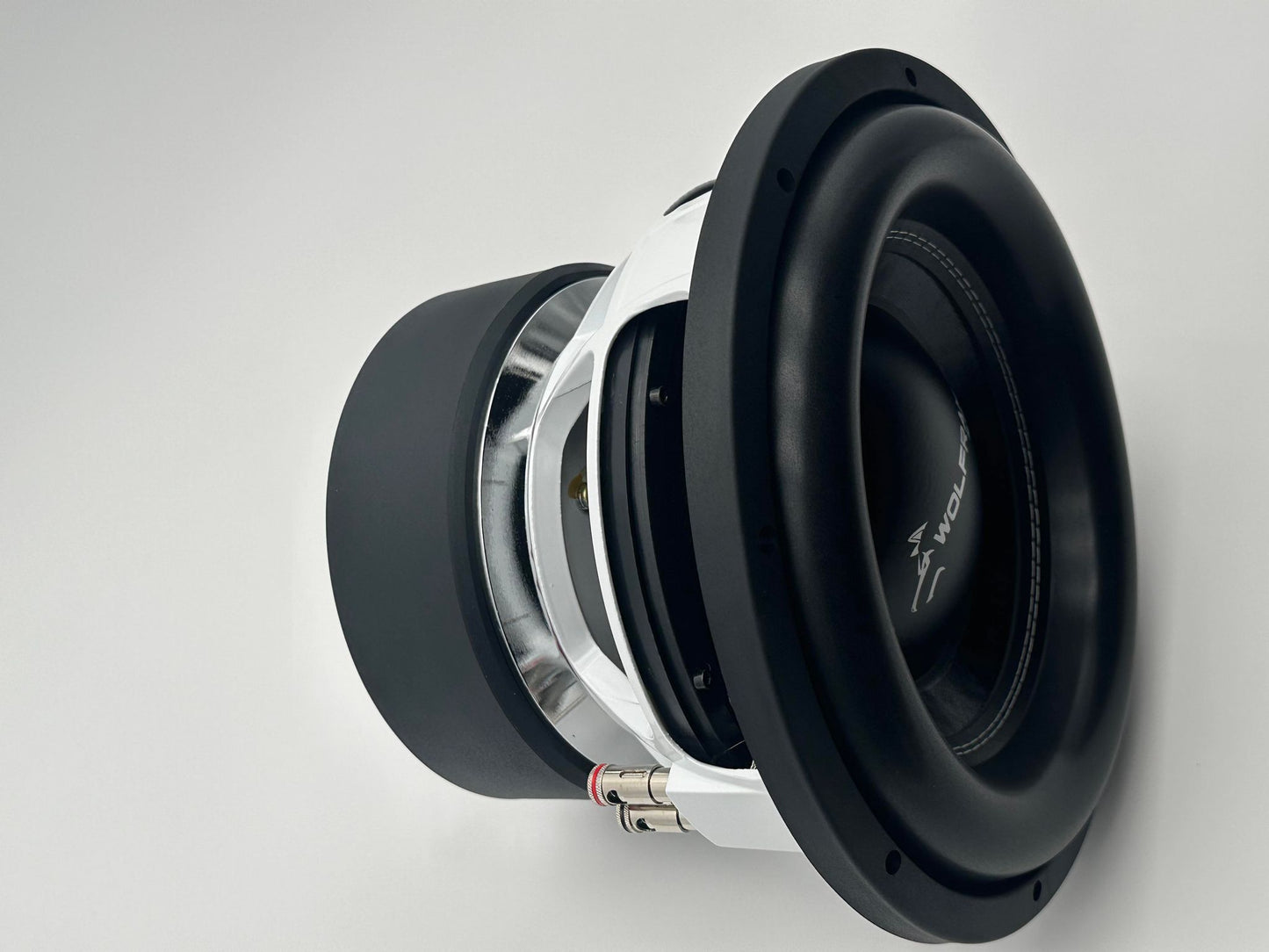

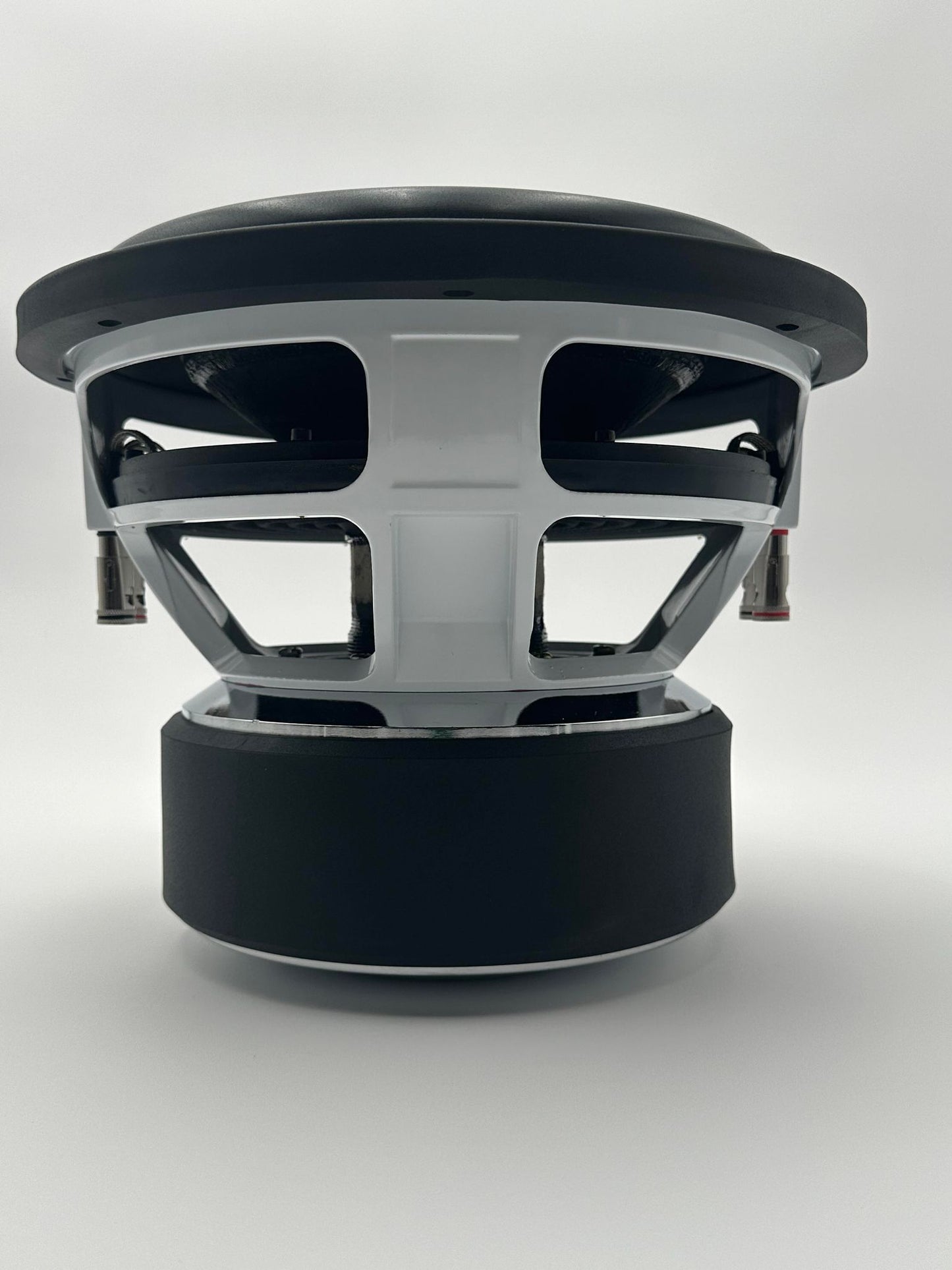

Hg-12 V2 | 12" SPL Subwoofer

ALL NEW HG-v2 : New motor and soft part design along with the all time favored PE Coil

Wolfram Audio introduces the new revision of our Hg-12: our unrivaled 12" SPL woofer when it comes to power, performance, and reliability. The Hg series features a massive 300oz magnet coupled with a heavily vented magnetic gap for extreme cooling. The Hg-12 utilizes a 3" 4-layer high temperature voice coil for an intense amount of power handling.

NOT COMPATIBLE WITH ORIGINAL HG-12

Specifications:

• Wolfram Audio Hg-12  - 12" SPL Subwoofer
• Dual 1 or 2 Ohm Voice Coil Configuration
• Peak Power : 4000 Watts
• RMS Power : 2000 Watts
• Competition Grade Pressed Paper Cone
• Stitched High Roll Foam Surround
• Massive Triple Stacked Magnet
• 4 layer Nomex spider
• 3" Flat AL Wire Voice Coil
• 4 Gauge Push Terminals

• Sensitivity : 85.9 dB
• Fs : 34.9 Hz
• Re :  1 or 2 Ohm
• Qms : 2.18
• Qes :  0.43
• Qts :  0.36
• Nref :  0.245%
• Cms :  0.08 mm/N
• Bl :  14.6
• Vas :  25.9 L
• Mms :  251.9 gr
• Xmax :  37mm (One-Way)

Enclosure Recommendations:

• 1.0 - 1.25 ft³ Sealed
• 2.0 - 2.5 ft³ Ported (Tuned 32hz - 34hz)
• Mounting Depth: 8 1/2"
• Cutout Diameter: 11 1/4"
• Displacement: 0.13 ft³
